AlNiCo Magnet Manufacturer

AlNiCo is the abbreviation of Aluminum-Nickel-Cobalt. As a member of non-rare earth metallic permanent magnetic material, which in addition to iron is composed primarily of aluminum (Al), nickel (Ni), and cobalt (Co). The composition of alnico alloys is typically 8–12% Al, 15–26% Ni, 5–24% Co, up to 6% Cu, up to 1% Ti, and the balance is Fe.
Various Alnico grades with differing magnetic properties are achieved by modifying the chemistry and manufacturing process. For example, specialized casting techniques are used to achieve the unique crystalline grain orientation found in the Alnico 5-7 grade.
Before the development of rare earth magnets in the 1970s, AlNiCo was the strongest type of permanent magnet. Alnico has been replaced by another type of magnet in many applications. However, the temperature stability of Alnico magnets, and the fact that they can be used at high temperatures up to 500C, make them indispensable in certain applications.

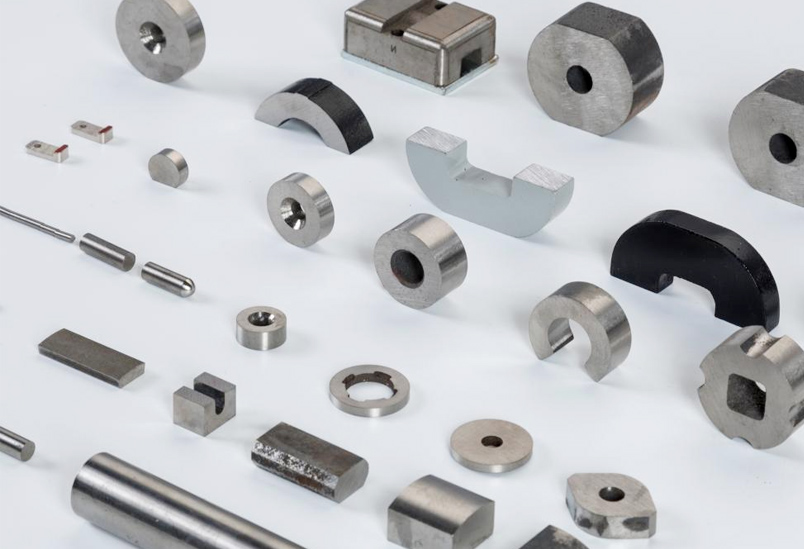

AlNiCo Magnet
Classification of AlNiCo Magnets

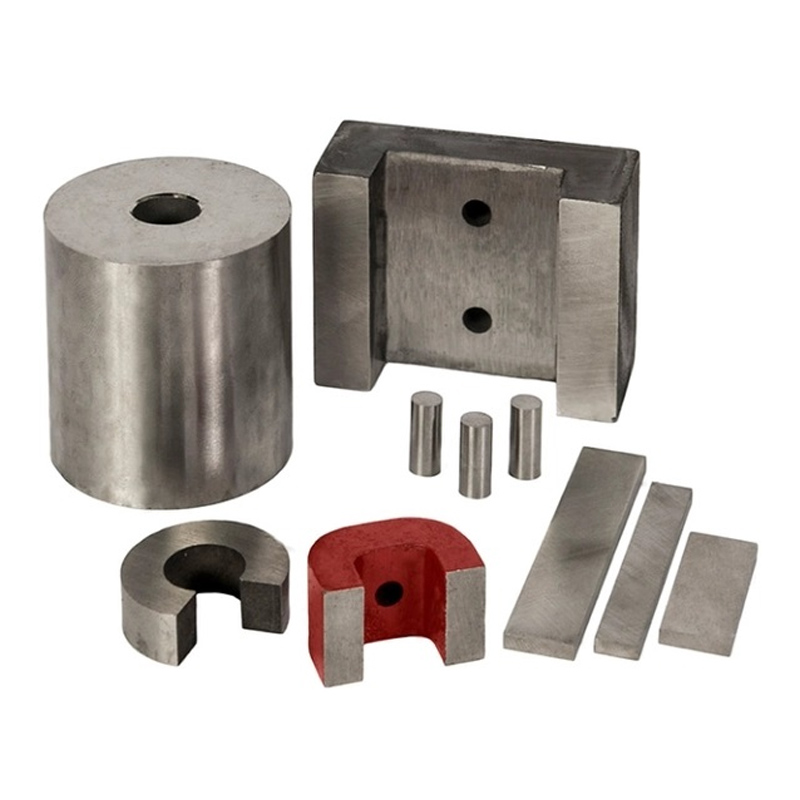

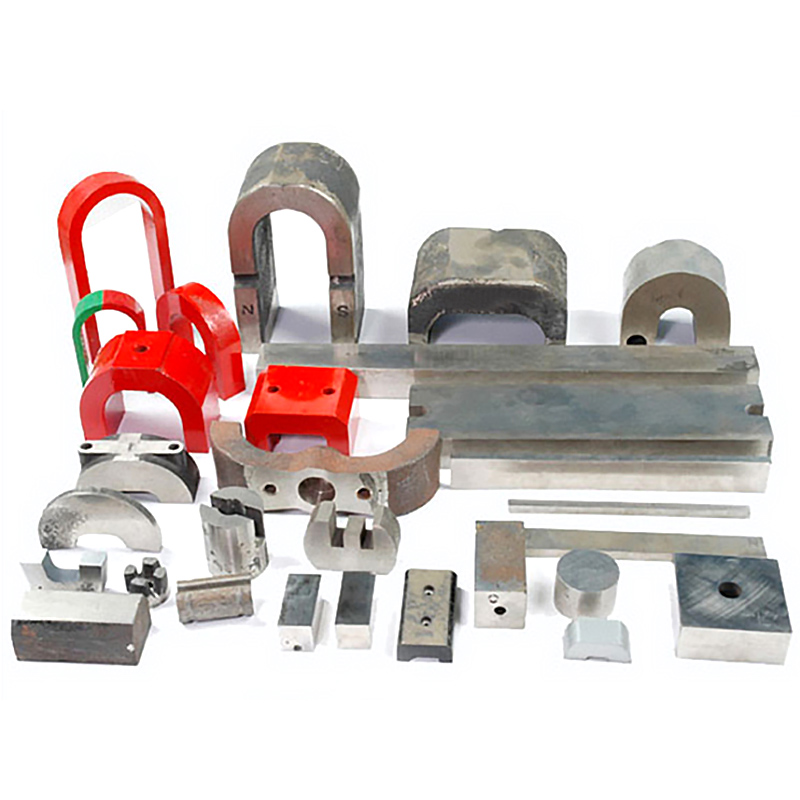

AlNiCo can be made by either casting or sintering processes. AlNiCo grades mainly vary in Cobalt content and relevant heat treatment process. This historical permanent magnet can be further divided into isotropic or anisotropic and grain-oriented or grain non-oriented. A cast magnet is larger in density which provides it with better magnetic performance. The casting process is also well-suited to large and complex shapes. Sintered magnet exhibit slighter lower magnetic performance but better mechanical properties.

Physical Properties of AlNiCo Magnet
Material Max. Energy Product (BH)max Curie Temperature Tc Coefficient of Thermal Expansion Electrical Resistivity Density Hardness Tensile Modules
MGOe  ℃ 10-6 /℃ μΩ·m g/cm3 HRC kN/mm2
Cast AlNiCo Magnet 1.00-5.25 760-860 11.0-13.0 45-75 6.9-7.3 45-55 0.02-0.15
Sintered AlNiCo Magnet 1.00-12.00 810-860 11.0-12.4 50-70 6.8-7.0 45 0.35-0.45
Surface Treatment of AlNiCo Magnets

Alnico magnets are not prone to corrosion and can normally be used without any surface protection. In some application, however, smooth surface is preferred.

About Our Company

Magnetic material core technology research and development team

Hangzhou Zhiyu Magnetic Technology Co., Ltd. is China AlNiCo Magnet manufacturers and AlNiCo Magnet factory. Hangzhou Zhiyu Magnetic Technology Co., Ltd. is located in Tonglu County, Hangzhou City. It mainly focuses on the research and production of samarium cobalt permanent magnetic materials and magnetic components, and also sells magnetic steel and magnetic components such as neodymium iron boron and aluminum nickel cobalt.
The products are widely used in industries such as national defense and military, aerospace, permanent magnet (high-speed) motors, hydrogen energy compressors, automotive electronics, 5G communication, petrochemical, instrumentation, etc. The variety of samarium cobalt products is complete, with an annual production capacity of over 200 tons;
Fully covering the entire series of samarium cobalt grades of 1:5 and 2:17, covering the entire series of Br0.5T-1.2T;
Stable production of high-performance samarium cobalt magnetic steel with Br ≥ 1.16T and Hcj≥25KOe;
Stable production of Br≥0.96T low-temperature coefficient series products, with residual magnetic temperature coefficient a<-0.01%;
Stable production of ultra-high temperature (temperature resistance ≥ 550 ℃) and high Br (Br ≥ 1.02T) samarium cobalt magnetic steel;
Provide one-stop services from design to product application.

  • 0+
    Production technology experience
  • 0+
    Enterprise employees
  • 0Ton+
    Productive power
  • 0+
    Exported countries



Industry knowledge

What are the advantages of AlNiCo magnets compared to other magnet types?
AlNiCo (Aluminum-Nickel-Cobalt) magnets offer several advantages compared to other magnet types, such as neodymium (NdFeB) magnets or ferrite magnets. Here are some advantages of AlNiCo magnets:
Temperature Stability: AlNiCo magnets have excellent temperature stability, withstanding high operating temperatures up to 500°C (932°F) without significant loss of magnetic performance. This makes them suitable for applications where magnets are exposed to elevated temperatures, such as automotive systems or industrial equipment.
Excellent Corrosion Resistance: AlNiCo magnets have good resistance to corrosion, making them suitable for applications in harsh environments or where exposure to moisture is a concern. They do not require additional protective coatings in most applications, unlike some other magnet types.
Good Strength and Magnetic Field: AlNiCo magnets offer strong magnetic fields, providing robust performance in applications where high magnetic strength is required. They have a high magnetic energy product, which is a measure of the energy stored in the magnet, allowing them to generate substantial magnetic fields.
Wide Range of Shapes and Sizes: AlNiCo magnets can be easily manufactured into various shapes and sizes, providing flexibility in design and application. They can be customized to fit specific requirements, making them suitable for diverse industrial applications.
High Remanence: AlNiCo magnets exhibit high remanence, which refers to the residual magnetic flux density after the magnetizing field is removed. This property allows AlNiCo magnets to retain their magnetic strength over time, providing long-term stability and performance.
Good Resistance to Demagnetization: AlNiCo magnets have excellent resistance to demagnetization, making them less susceptible to external magnetic fields or mechanical shocks. This property ensures their durability and longevity in demanding operating conditions.
In which industries are AlNiCo magnets commonly used?
AlNiCo (Aluminum-Nickel-Cobalt) magnets find applications in various industries due to their unique combination of magnetic properties. Here are some industries where AlNiCo magnets are commonly used:
Automotive Industry: AlNiCo magnets are utilized in various automotive applications, including electric motors, sensors, relays, and ignition systems. They are particularly suitable for high-temperature environments, making them ideal for automotive components.
Aerospace Industry: AlNiCo magnets are used in aerospace applications such as navigation systems, compasses, sensors, and actuators. Their stability at high temperatures and resistance to demagnetization make them suitable for aerospace environments.
Electrical Industry: AlNiCo magnets are employed in electrical devices and systems, including transformers, generators, loudspeakers, magnetic sensors, and switches. Their strong magnetic field and high Curie temperature contribute to their effectiveness in electrical applications.
Instrumentation and Measurement: AlNiCo magnets are commonly found in scientific instruments, laboratory equipment, and measuring devices. They are used in applications such as magnetic flow meters, level indicators, and magnetic sensing technologies.
